Lateral & longitudinal seismic bracing assemblies that restrain non-structural MEP services — pipe, multi-pipe trapeze, cable tray and rectangular HVAC duct — and transfer seismic load to the building structure.
A seismic bracing system is the engineered assembly of channel, braces, connectors and anchors that holds building services in place during an earthquake. Instead of letting pipes, ducts and cable trays swing, drop or rupture, the bracing transfers seismic forces back into the structure — protecting the services, the building and the people inside.

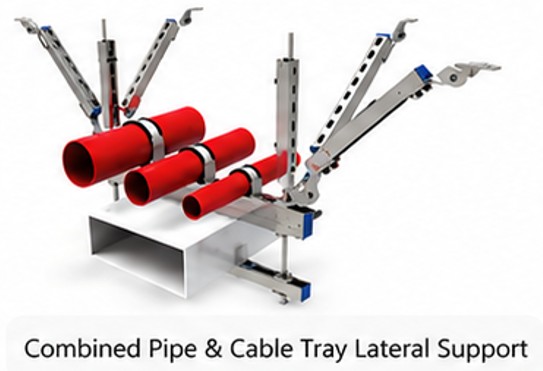

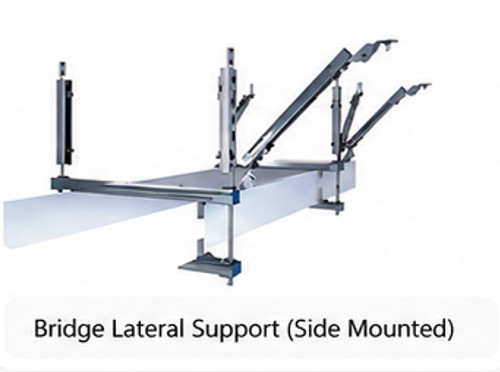

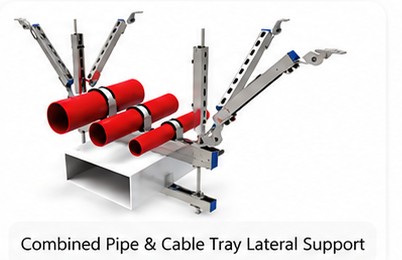

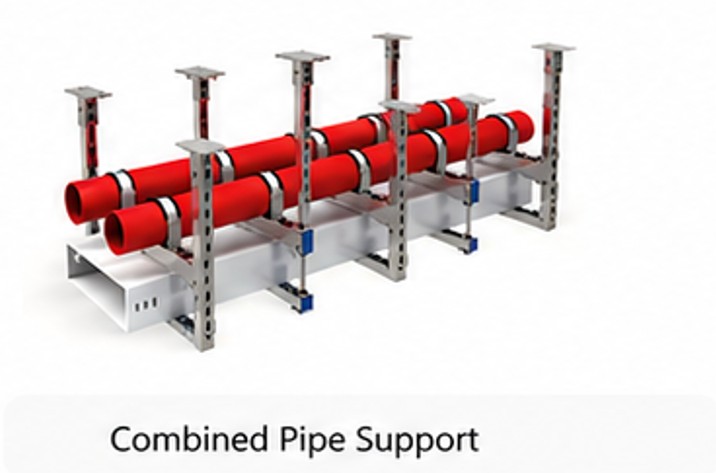

Our systems cover the full range of configurations seen on real MEP projects: single-pipe lateral and longitudinal braces, multi-pipe and trapeze racks, rectangular HVAC duct bracing, and cable tray bracing — all built from finished, compatible components for fast, repeatable installation.
Click to enlarge
Zoom
Seismic support and bracing for large-bore pipework and mechanical services in a deep underground hydroelectric powerhouse — heavy-duty restraint for critical infrastructure.
Zoom
Seismic bracing and hanger support for a fire-rated, 1000 °C high-temperature insulation calcium silicate board duct system — lateral and longitudinal restraint sized to the insulated duct dimensions.
Click to enlarge
| Item | Specification |
|---|---|
| Bracing types | Lateral, longitudinal, four-way |
| Supported services | Single / multi-pipe, trapeze racks, rectangular duct, cable tray |
| Channel sizes | KIS 21 / 41 / 52 / 62 / 72 (C-channel) |
| Material | Q235B carbon steel, per GB/T 700-2006 |
| Surface finish | Electro-galvanized (standard); hot-dip galvanized (optional) |
| Brace pipe / strut | Galvanized seismic brace pipe with swivel attachments |
| Connection | Gusset connectors, swivel hinges, beam & channel attachments |
| Anchorage | Undercut / wedge concrete anchors; beam clamps to steel |
| Standard | GB 50981; aligned with IBC / NFPA 13 |
| Customization | OEM/ODM, custom drilling & lengths, project BOM & shop drawings |
Send your pipe schedule, duct sizes or drawings — we'll spec the bracing and quote within 24 hours.
